Product Features
Display Unit | |
Power | 1.5V X 4 (AA Battery) |

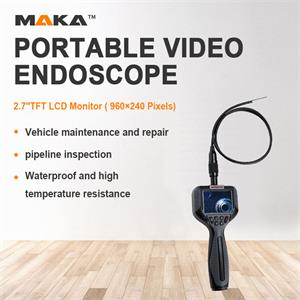

Screen Size | 2.7"TFT LCD Monitor ( 960×240 Pixels) |
Contrast | 300 Adjustable Contrast (6 Levels) |
Video system | PAL/NTSC |
Operating Temperature | -10℃ to 50℃ （-14°to 122℉） |
Functions | Allows for visual inspection in hard-to-see area |
Camera | |
Outer Diameter 5.5mm lens optional) | |
Imaging Sensor | 1/9 VGA CMOS sensor |
Effective Pixels | 640x480 optional |
Focus Distance | 30mm-80mm |
Auto White Balance | Automatic |
Image Distortion | ＜3.7% |
Power Consumption | 1.8-2.6W |
Housing material | Aluminum |
Field of View(FOV) | 54°- 66° |
Insertion tube | |
Total Length | 1140mm±20mm |
Tube Length | 1050mm±20mm |
Tube Dia. | 4.8mm |
Light Source | |
Number of Lamps | 6PCS |
Brightness Control | Adjustable (6 Levels) |
Lamp Type | LED |
Minimum illumination | 0-LUX |
Lamp Life | 8000hrs. |
Len Tube Operating Environment | |
Operating Temperature | -10℃ to 60℃ （-14°to 134℉） |
Storage Temperature | -10℃ to 50℃ （-14°to 122℉） |
Relative Humidity | 15%-85%RH |

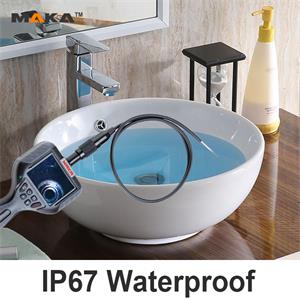

Waterproof | IP67（Insertion tube and lens) |
Hazardous Environments | Not rated for use in hazardous environments |
Packing list | |
Main Unit | 1pc |
Flexible Tube with len | 1pc |
Video Cable | 1pc |
Accessories | 1pc for each of hook,mirror,magnet |
